19 sept 2025 authored floris

General architecture

11000 - bank account 1
11001 - bank account 2

110010 - bank account 11

110011
Keep the 00

vat deductable=bool

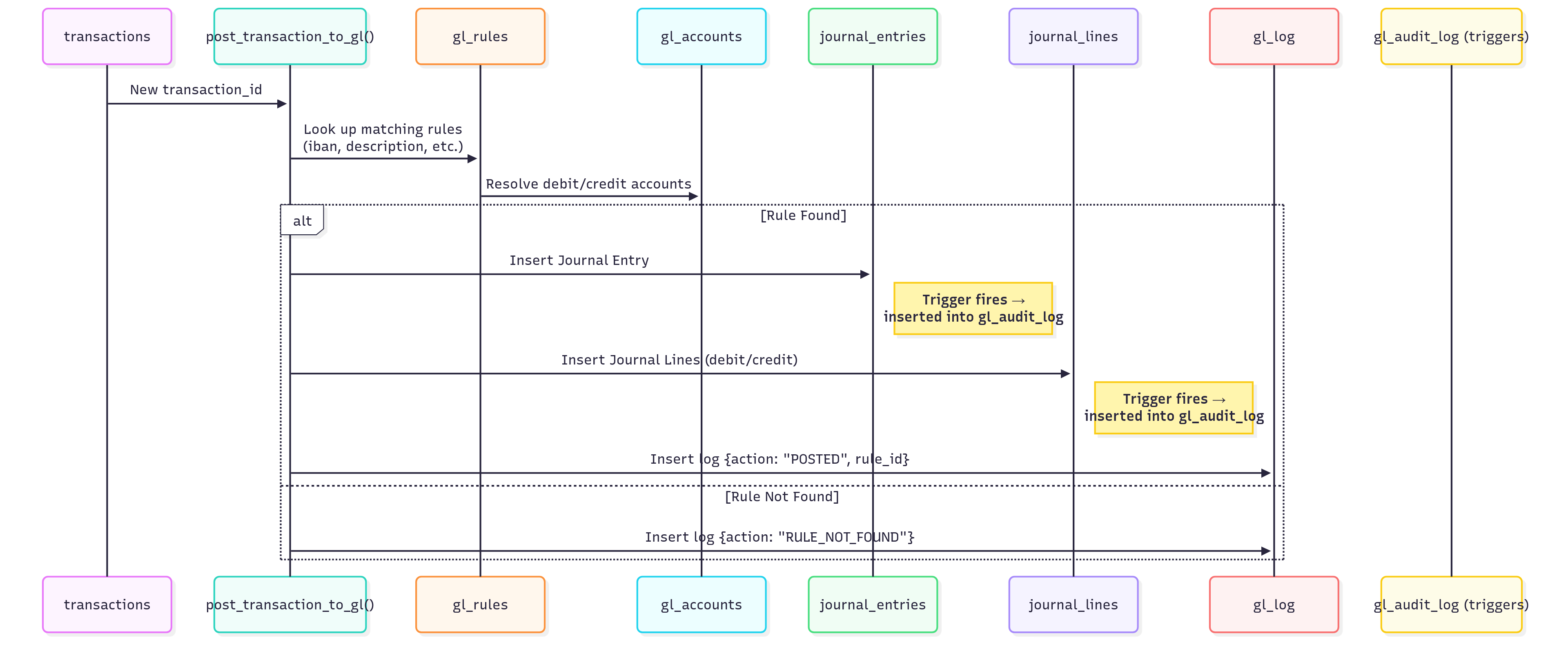

Transaction Lifecycle

Transaction (tx) lifecycle

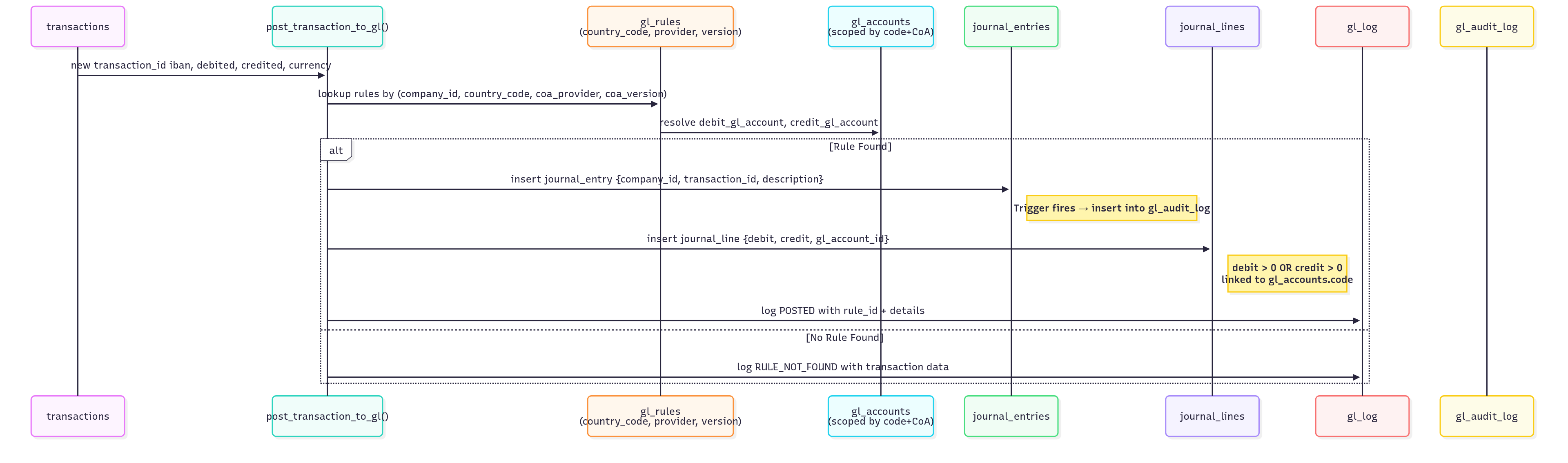

Debit / Credit Posting Flow (with Country/CoA Context)

• transactions → raw banking transactions

• documents_v2 → receipts, invoices, supporting docs

• reconciliations → links transactions ↔ documents

• v_banking_accounts → unified banking view

• gl_accounts → CoA scoped by country_code, coa_provider, coa_version

• gl_rules → JSON-based conditions map transactions to GL accounts

• journal_entries → headers for postings (per transaction or doc)

• journal_lines → debit/credit details

• gl_log → operational log from posting functions (POSTED, RULE_NOT_FOUND)

• gl_audit_log → immutable change capture via triggers on gl_accounts, gl_rules, journal_entries, journal_lines

• post_transaction_to_gl() → posts one transaction into GL

• post_unposted_transactions() → batch posts all unposted company transactions

• v_gl_full_audit → joins transactions, documents, reconciliations, journals, and logs for full visibility

this design will allow a parallel charts of accounts (e.g. RGS 3.7 NL, RGS 3.8 NL, IFRS BE) switch providers/versions without losing history

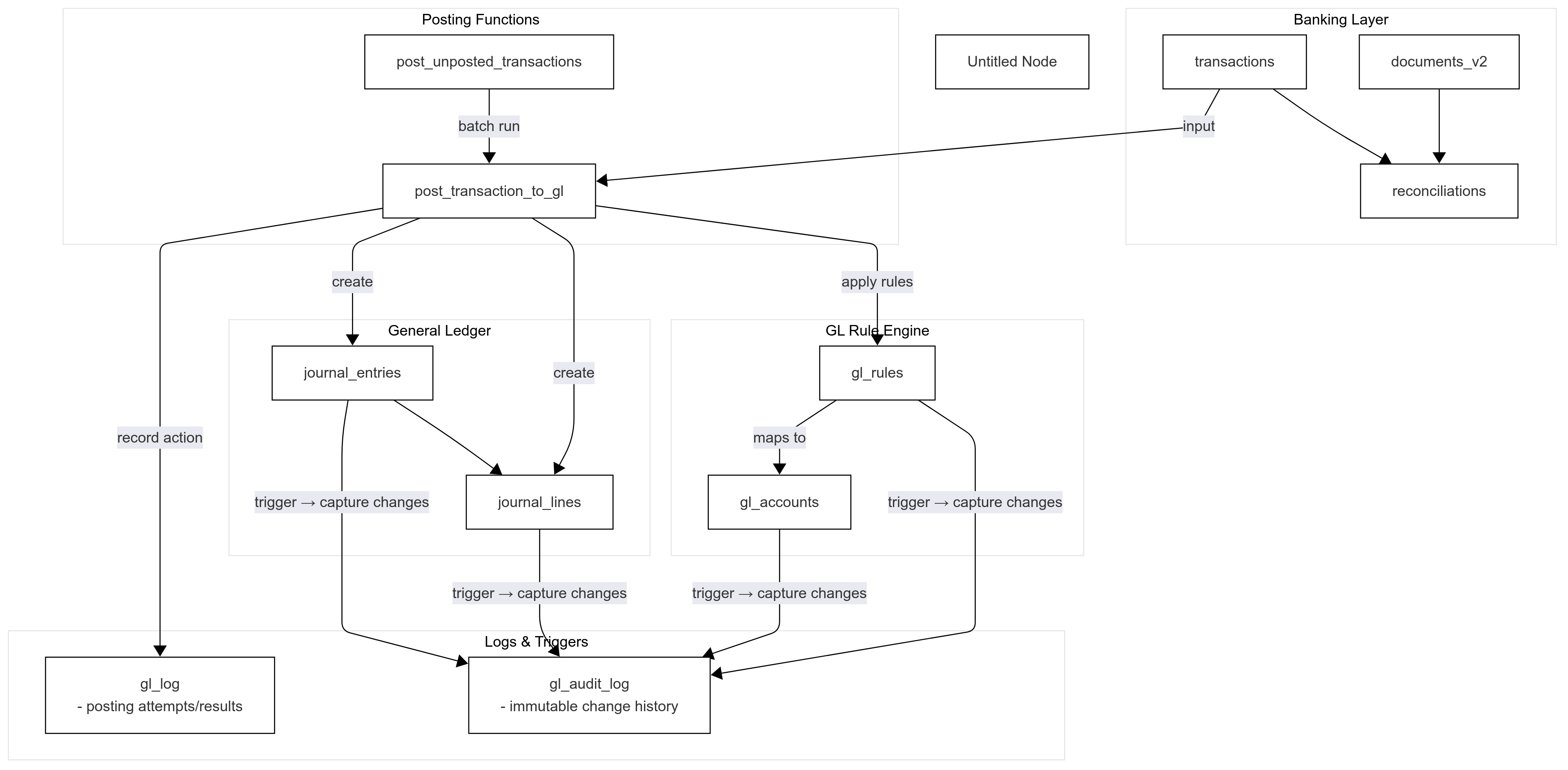

Systems overview

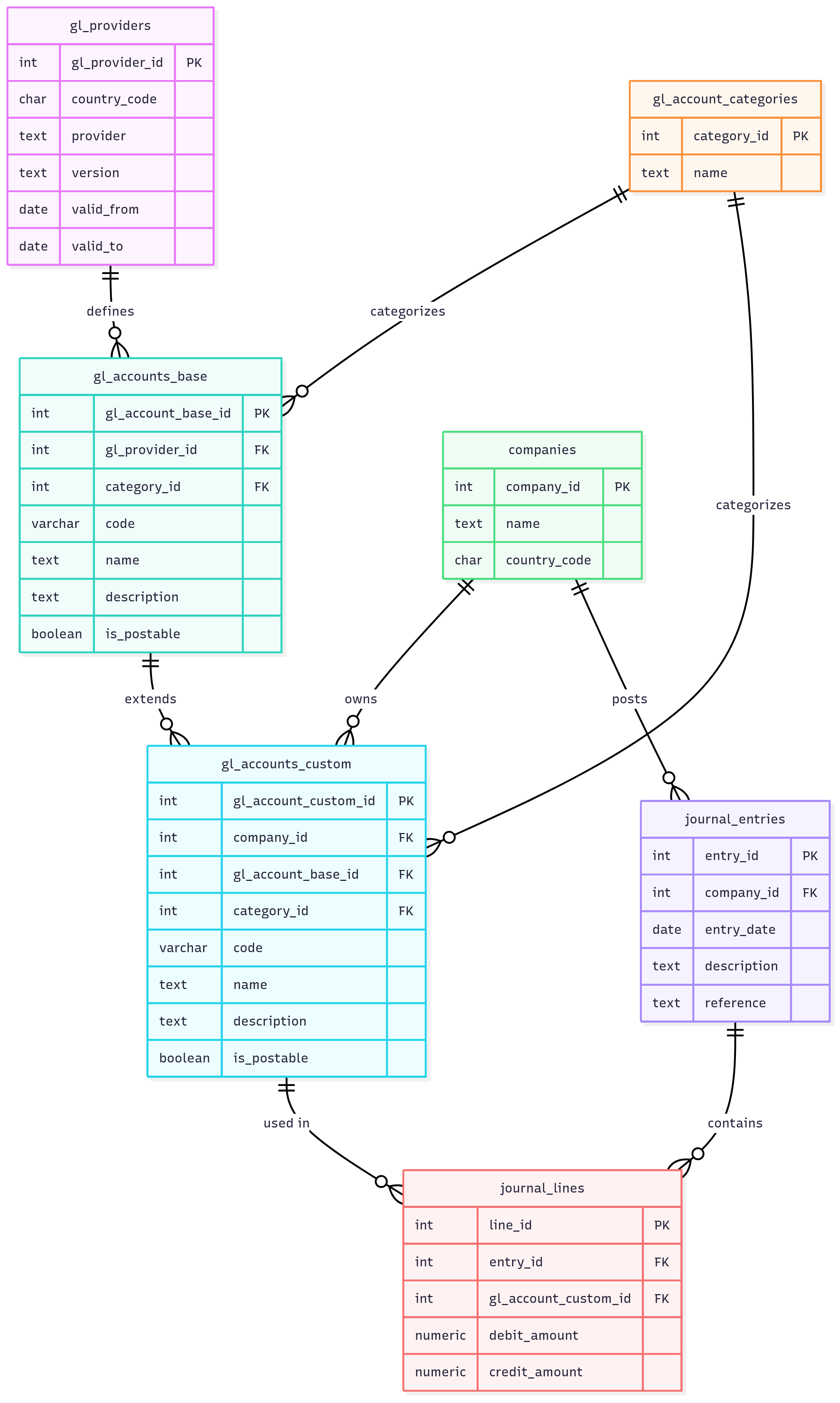

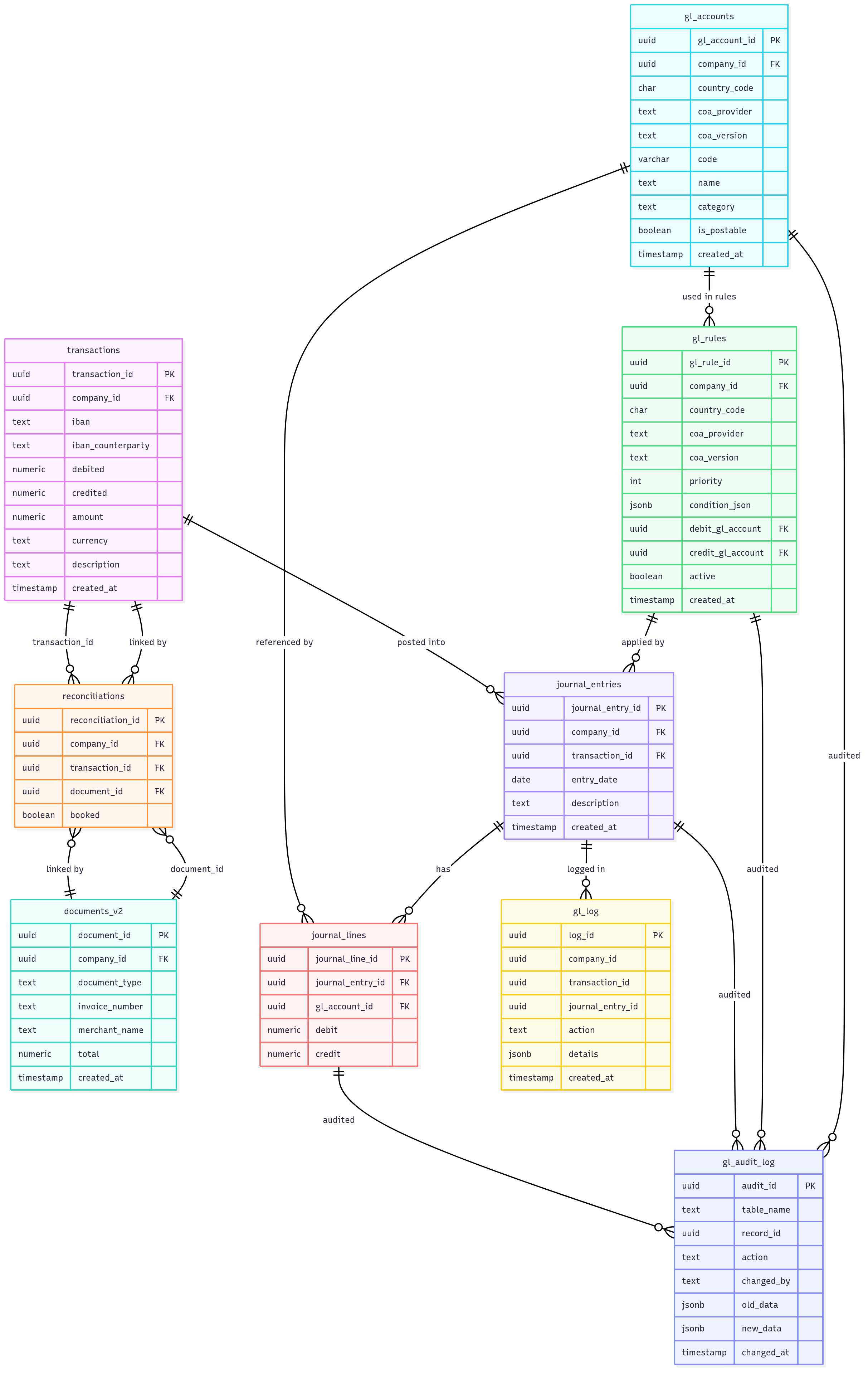

ERD

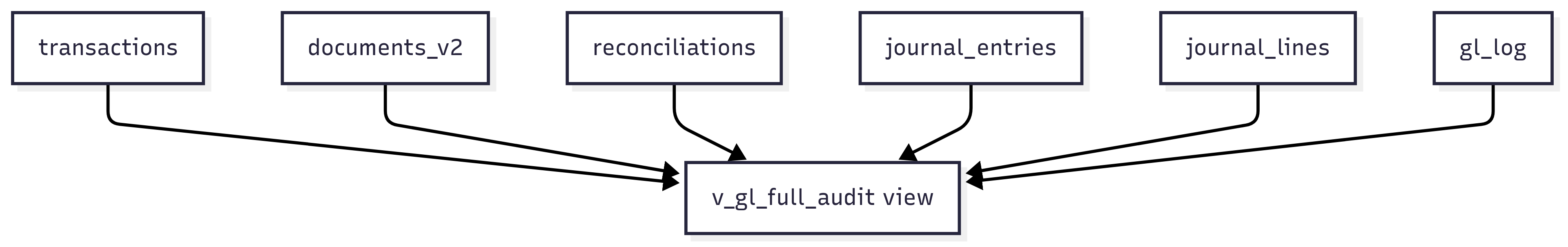

Reporting view
